HN054 Axle Horizontal Double Head Saw

Brand Name : HJ

Model Number : HN054

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 1-2 months

Packaging Details : Plywood case or pallet

saw machine : Axle horizontal double-head saw

Contact Now

Product application

This product is mainly used in the special sawing (aluminum) compound machine tool for shaft machining parts, such as train wheel and axle, which need both ends of sawing at the same time and punching the center hole.

The basic parameters	unit	specifications
		HN054
Long shaft range of machining shaft	mm	1600-3000.
Machining axle diameter range	mm	Φ100 -Φ280.
Specification of band saw blade	mm	34 x1. 06 x4585
Saw blade speed	m/min	20, 35, 50, 70
Feed speed	m/min	Step-less speed regulation
Main motor power	kw	4X2
Hydraulic motor power	kw	4
Cooling motor power	kw	0.09 X2
Hydraulic tank rongxing	L	150
Cooling water tank rongxing	L	70X2
Maximum machining axle blank heavy star	kg	1500
The perpendicularity of the end of a sawn member facing its axis	mm/mm	0.4/100
Single piece processing beat	min /	9.6

Product Tags:

Horizontal Double Head Saw

Axle Double Head Saw

HN054 Diamond Wire Saw Machine

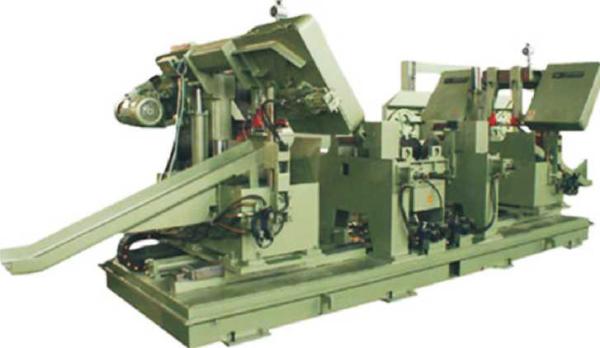

HN054 Axle Horizontal Double Head Saw Images
