Brand Name : HL

Model Number : JMZ Series

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 Sets/month

Delivery Time : 6-8 weeks

Packaging Details : standard export packing

Max flow rate : 2400L/h

Max discharge pressure : 28Mpa

Max suction lift : 1.5m water column

Medium temperature : -1012-100*C

The highest ambient temperature : +40° C, the highest elevation: 1000m

Contact Now

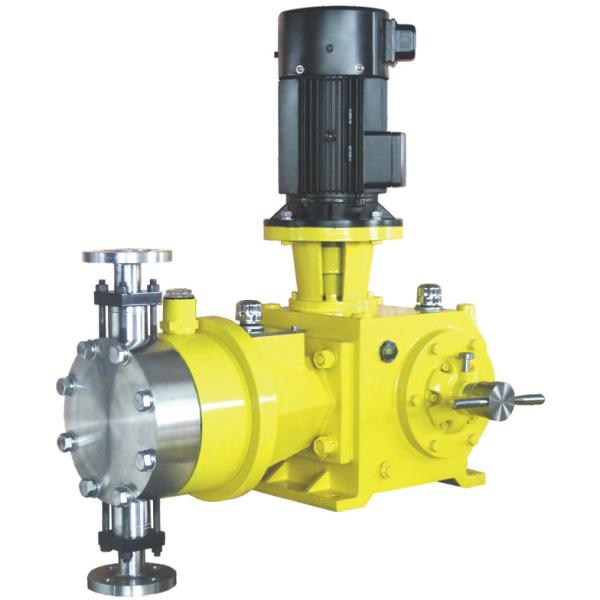

JMZ Series Hydraulic Diaphragm Metering Pump

Medical Chemistry Hydraulic Diaphragm Metering Pump Centrifugal Proportional

Main Performance Parameters

Major Features

Witch hard and compact design, its sealing performance is better than the plunger-type pump.
Variable eccentric structural adjustment ensures smooth fluctuations in flow pulsation; new machine enables the result more accurate and reasonable.
Refill valve ensures balanced hydraulic oil replenishment; adjustable safety valve fully protects the hydraulic end parts from damage, such as diaphragm rupture, caused by high pressure of hydraulic chamber.
When transporting corrosive pulp, flammable, explosive, other dangerous chemicals, diaphragm rupture alarm device with double diaphragms shall be recommended.

Control Mode

Power supply: 380V/220V-50Hz/60Hz/three-phase/single-phase
Variable frequency controller receives the external control signal and adjusts the stroke speed, input signal: 4-20 mA analog signal
Motor controller determines three-phase motor by "on/off" mode, adjusts the output flow

Main Applications

The product is extensively used in many fields such as environmental protection, petrochemical, chemical, oil refining, metallurgy, medicine, food, water treatment and other fields, especially in the fields with high precision, high pressure, and high temperature.

Flow/Pressure

Code	Max flow	Max pressure	Plunger diameter	Stroke frequency	Stroke length	Motor power
Code	(L/h)	(Mpa)	(mm)	(m")	(mm)	(kW)
JMZ2400/0.8	2400	0.8	115	130	32	2.2
JMZ2400/0.5		0.5				1.5
JMZ2400/0.4		0.4				1.1
JMZ2200/0.9	2200	0.9	110			2.2
JMZ2200/0.6		0.6				1.5
JMZ2200/0.5		0.5				1.1
JMZ2000/1.0	2000	1	105			2.2
JMZ2000/0.7		0.7				1.5
JMZ2000/0.5		0.5				1.1
JMZ1 800/1.1	1800	1.1	100			2.2
JMZ1 800/0.8		0.8				1.5
JMZ1 800/0.6		0.6				1.1
JMZ1 600/1.2	1600	1.2	95			2.2
JMZ1600/0.8		0.8				1.5
JMZ1 600/0.6		0.6				1.1
JMZ1450/1.4	1450	1.4	90			2.2
JMZ1450/1.0		1				1.5
JMZ1450/0.7		0.7				1.1
JMZ1 300/1.6	1300	1.6	85			2.2
JMZ1 300/1.1		1.1				1.5
JMZ1 300/0.8		0.8				1.1
JMZ1150/1.8	1150	1.8	80			2.2
JMZ1150/1.2		1.2				1.5
JMZ1150/0.9		0.9				1.1
JMZ1 000/2.0	1000	2	75			2.2
JMZ1 000/1.4		1.4				1.5
JMZ1 000/1.0		1				1.1
JMZ890/2.3	890	2.3	70			2.2
JMZ890/1.6		1.6				1.5
JMZ890/1.2		1.2				1.1
JMZ760/2.7	760	2.7	65			2.2
JMZ760/1.8		1.8				1.5
JMZ760/1.4		1.4				1.1
JMZ650/3.1	650	3.1	60			2.2
JMZ650/2.1		2.1				1.5
JMZ650/1.6		1.6				1.1
JMZ560/3.6	560	3.6	56			2.2
JMZ560/2.5		2.5				1.5
JMZ560/1.8		1.8				1.1
JMZ450/4.5	450	4.5	50			2.2
JMZ450/3.1		3.1				1.5
JMZ450/2.3		2.3				1.1
JMZ360/5.5	360	5.5	45			2.2
JMZ360/3.8		3.8				1.5
JMZ360/2.8		2.8				1.1
JMZ290/7.0	290	7	40			2.2
JMZ290/4.8		4.8				1.5
JMZ290/3.5		3.5				1.1
JMZ220/9.2	220	9.2	35			2.2
JMZ220/6.3		6.3				1.5
JMZ220/4.6		4.6				1.1
JMZ1 60/12.5	160	12.5	30			2.2
JMZ1 60/8.5		8.5				1.5
JMZ1 60/6.3		6.3				1.1
JMZ110/17.9	110	17.9	25			2.2
JMZ110/12.2		12.2				1.5
JMZ110/9.0		9				1.1
JMZ70/28.0	70	28	20			2.2
JMZ70/19.1		19.1				1.5
JMZ70/14.0		14				1.1
